Menu item 53 is only relevant if communication is to be realized via TELEBOX.
This menu serves to manage all hardware resources available for communication tasks. A hardware configuration can be assigned to the corresponding Telebox communication profile in menu item 52 (using option 8). The following hardware types are available as resources:
-
ISDN (*ISDNTA)
Digital ISDN Terminal Adapter on the AS/400 V.24 -
ISDN X25 (*ISDNX25)
X.25 ISDN Terminal Adapter on the AS/400 V.24 or X.21 on the PC. -
X.25 SVC (*X25)
Datex-P Main Access

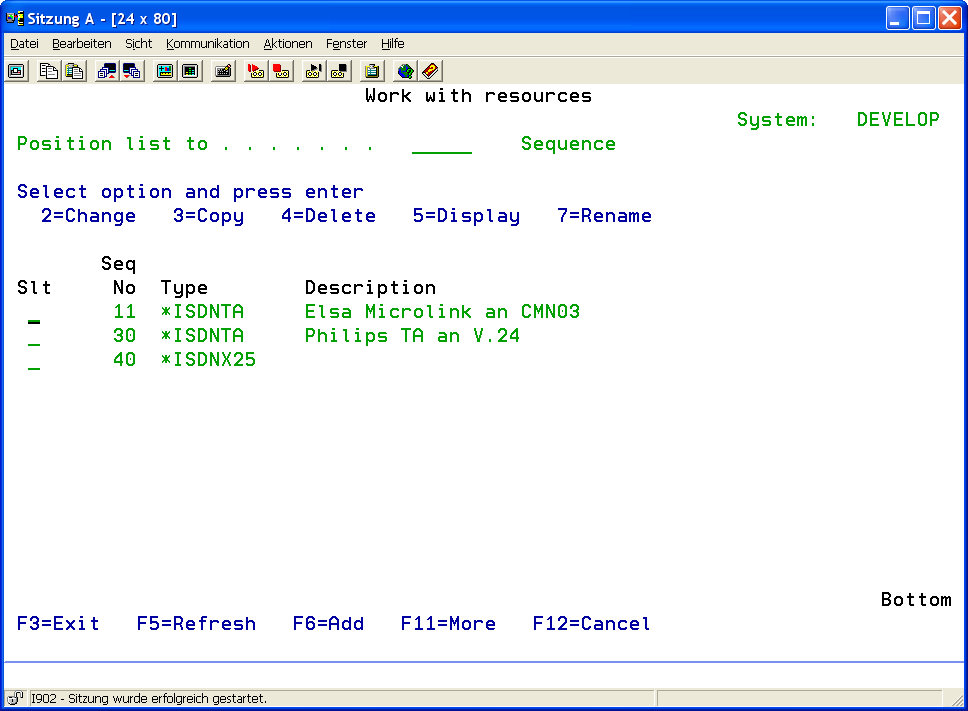

The following display shows menu item 53 with two created resources:
To create a communication resource, press F6.

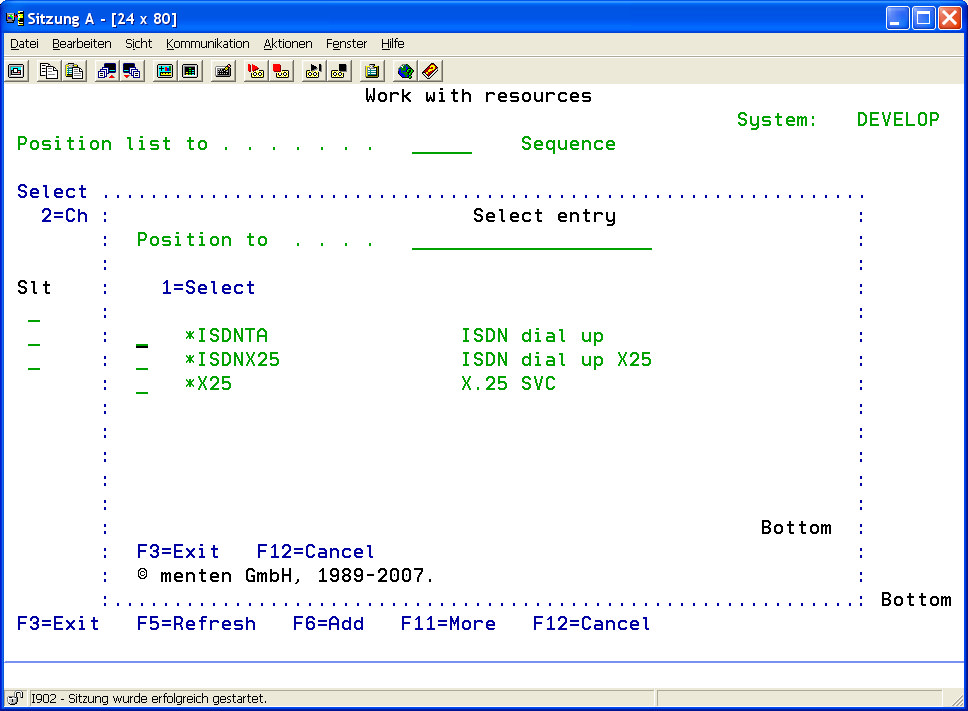

The following program interface will appear:
Select the resource type by entering option number 1 into the corresponding choice box and press enter.
Below, the different resource's parameters will be explained.
