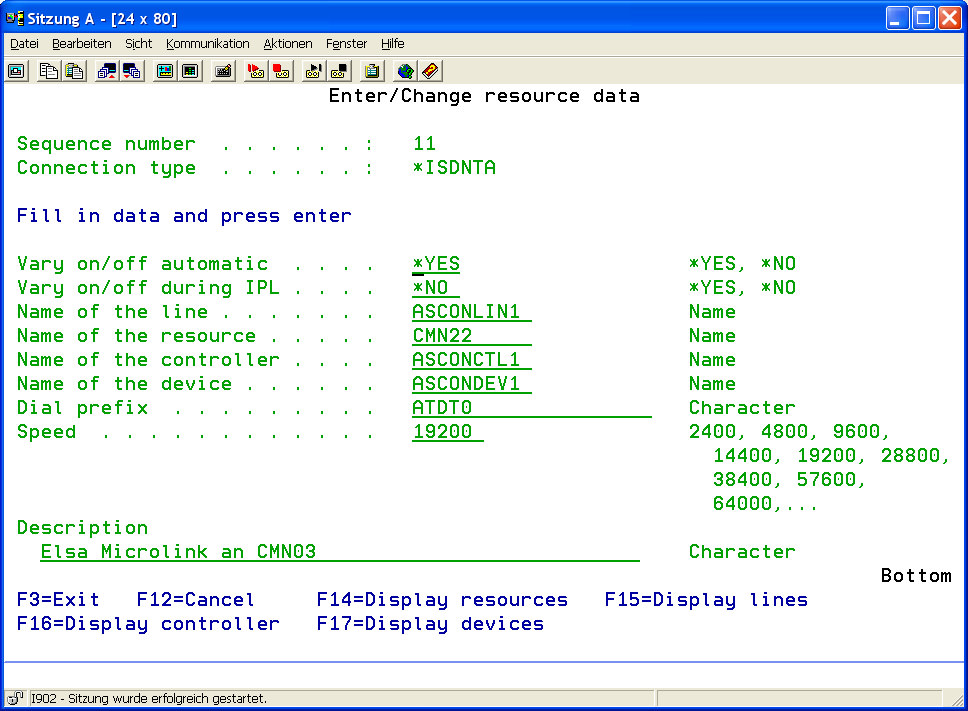

Line on / off |
This parameter determines if lines are to be varied on and off automatically. In this case, the line need not be activated by operating staff.
|
||||
|
Vary on and off during IPL |
Lines managed here can be varied on automatically after system reboot. This field's entry controls the IPL ( ) value in the line description
|
||||
|
Line Name |
Enter a line description name that is to be used for the resource. |
||||
|
Resource Name |
Enter the AS/400 resource name (CMN01/LIN011....). |
||||
|
Controller Name |
Enter a controller description name that is to be used for the resource |
||||
|
Device Name |
Enter a device description name that is to be used for the resource |
||||
|
Connection Prefix |
This parameter determines additional numbers to be dialed before the connection number stored in the profile-resource-allocation. Using for example ATX1DT0 a "0" is prefixed to reach a subscriber line in a telephone system |
||||
|
Speed |
This parameter determines the resource's line speed.
Valid values: 2400,4800,9600,14400,19200,38400,57600,64000.... |
||||
|
Description |
Enter a short description of the resource entry. |
