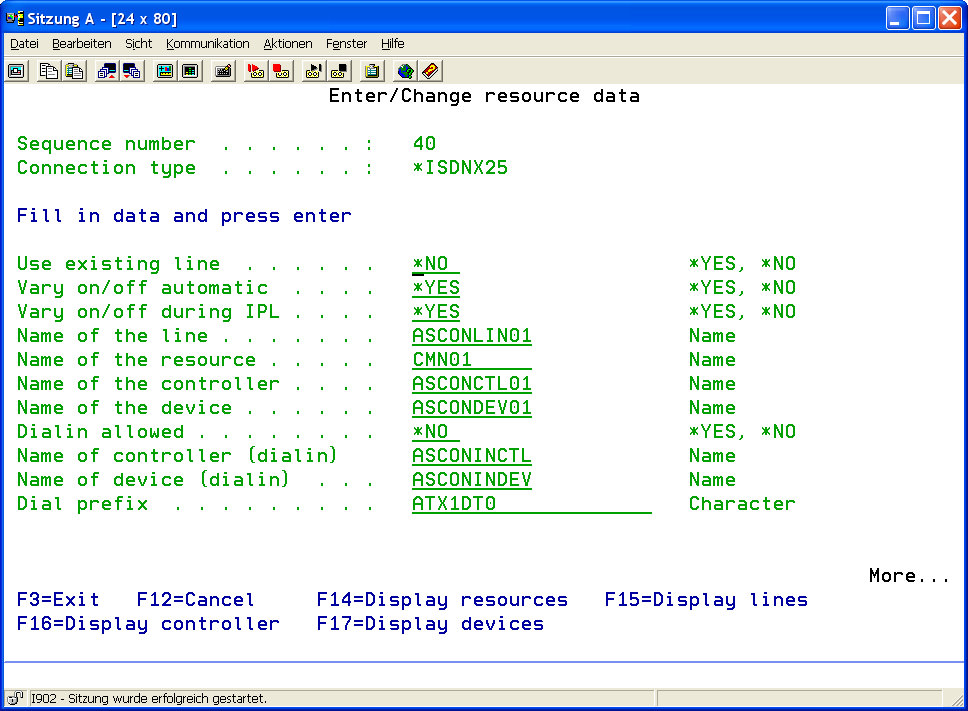

Use Existing Line |
This parameter determines if an already existing line description on the system will be used or a new line description is to be created. Usually, there will be an existing line if a Datex-P connection running several logical channels is in use.
|
||||
|
Line on / off |
This parameter determines if lines are to be varied on and off automatically. In this case, the line needs not to be activated by operating staff.
|
||||
|
Vary on and off during IPL |
Lines managed here can be varied on automatically after system reboot. This field's entry controls the IPL ( ) value in the line description |
||||
|
Line Name |
Enter a line description name that is to be used for the resource. |
||||
|
Resource Name |
Enter the AS/400 resource name (CMN01/LIN011....). |
||||
|
Controller Name |
Enter a controller description name that is to be used for the resource. |
||||
|
Device Name |
Enter a device description name that is to be used for the resource. |
||||
|
Dial-in allowed? |
For certain communication modules (e.g. OFTP), the partner's dial-in to this AS/400 system can be allowed. This parameter determines if this is generally allowed for this resource
|
||||
|
Controller Name (dial-in) |
Enter, if allowed, a controller description name which is to be used here |
||||
|
Device Name (dial-in) |
Enter, if allowed, a device description name that is to be used here |
||||
|
Connection Prefix |
This parameter determines additional numbers to be dialed before the connection number stored in the profile-resource-allocation. Using for example ATX1DT0 a "0" is prefixed to reach a subscriber line in a telephone system.
|
||||
|

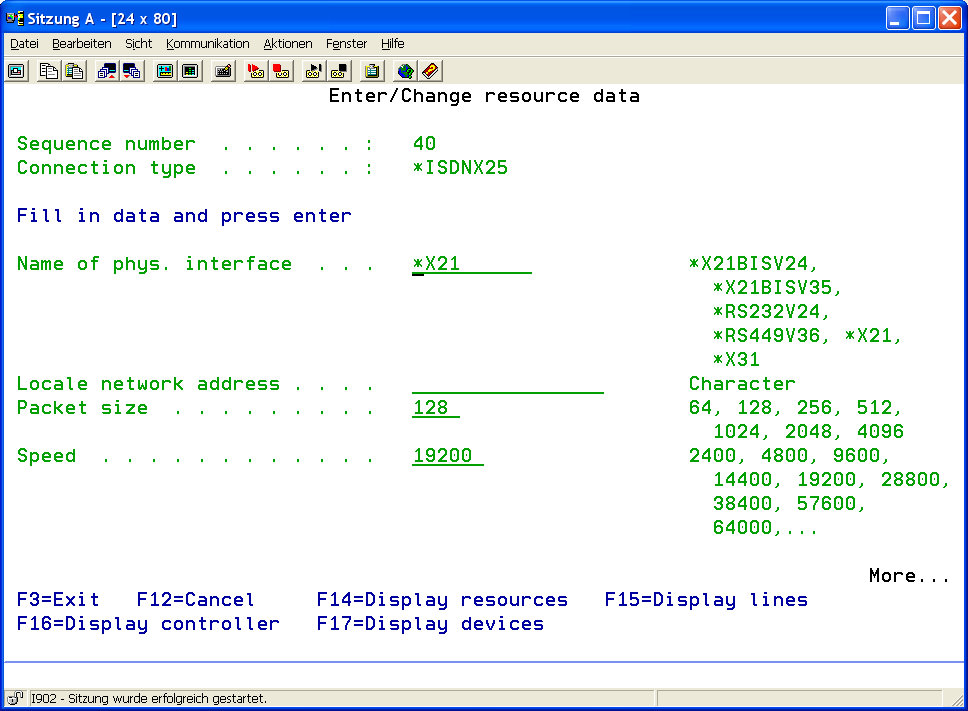

Name of Physical Interface |
Enter the name of the interface to which the resource is connected.
Possible values: *X21BISV24, *X21BISV35, *RS232V24, *RS449V36, *X21, *X31 |
||||
|
Local Network Address |
Enter the address (connection number) allocated to the line. |
||||
|
Packet Size |
Enter the packed size to be used.
Possible values: 64, 128, 256, 512, 1024, 2048, 4096 |
||||
|
Speed |
This parameter determines the resource's line speed.
Valid values: 2400,4800,9600,14400,19200,38400,57600,64000.... |
||||
|
Description |
Enter a short description of the resource entry. |
