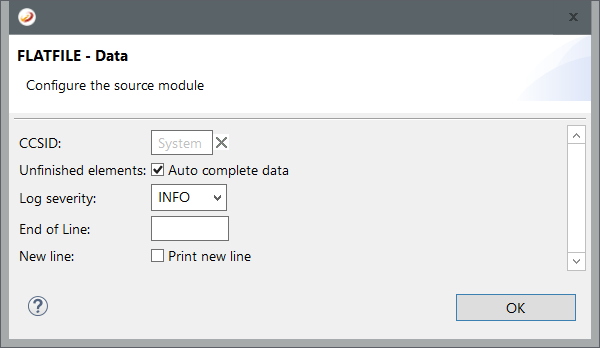

FLATFILE as source
The following options are available for FLATFILE as source:
CCSID: Specify the codepage that will be used to read the source file.
Unfinished elements: Select this option to complete elements automatically.
Log severity: Select the log level.
End of Line: Insert a special end of line character - not CR, LF or CRLF
New line: Select this option to insert the special end of line character automatically at the end.

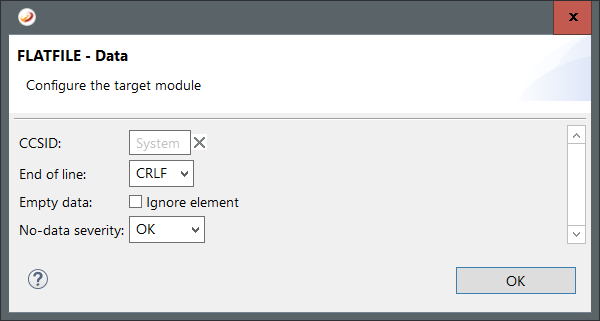

FLATFILE as target
The following options are available for FLATFILE as target:
CCSID: Specify the codepage that will be used to save the target file.
End of line: Select the end of line character
Empty data: Select this option if missings fields should not result in an error.
No-data severity: Select how to handle empty data.
*Values - Group FLATFILE
The FLATFILE groups contains *VALUES that will be returned if a FLATFILE module partner master data entry is present. The current message and segment counter can also be consulted.
|
*FLATFILE.SEGCNT.SOURCE.FILE |
Current number of segments for processing. |
|
*FLATFILE.MSGCNT.SOURCE.FILE |
Current number of messages for processing. |
|
*FLATFILE.MSGVER.SOURCE.FILE |
Version of the message type. |
|
*FLATFILE.SEGNAME.SOURCE.FILE |
Name of the current segment. |
|
*FLATFILE.MSGTYP.SOURCE.FILE |
Message Type. |
|
*FLATFILE.MSGREF.SOURCE.FILE |
Message reference number. |
|
*FLATFILE.INTREF.SOURCE.FILE |
Interchange reference number. |
|
*FLATFILE.PARTNERID.SOURCE.PARTNER |
Source side's partner ID. |
|
*FLATFILE.PARTNERID.TARGET.PARTNER |
Target side's partner ID. |
|
*FLATFILE.CCSID.SOURCE.FILE |
Source file's CCSID. |
|
*FLATFILE.CCSID.TARGET.PARTNER |
Source's CCSID. |
|
*FLATFILE.CCSID.SOURCE.FILE |
Target file's CCSID. |
|
*FLATFILE.CCSID.TARGET.PARTNER |
Target's CCSID. |
|
*FLATFILE.SENDERILN.SOURCE.FILE |
Sender ILN of the source file. |
|
*FLATFILE.SENDERILN.SOURCE.PARTNER |
Sender ILN of the source side. |
|
*FLATFILE.SENDERILN.TARGET.PARTNER |
Sender ILN of the target side. |
|
*FLATFILE.RECIPIENTILN.SOURCE.FILE |
Recipient-ILN from the source file. |
|
*FLATFILE.RECIPIENTILN.SOURCE.PARTNER |
Recipient-ILN from the source partner. |
|
*FLATFILE.RECIPIENTILN.TARGET.PARTNER |
Recipient-ILN from the target partner. |
