ZUGFeRD Tutorial 2, Reading a ZUGFeRD PDF

In order for i-effect to automatically read ZUGFeRD files, a new workflow must be set up in the *SERVER automation module.

The prerequisite is that the mappings and XML schema definitions have been installed on the system. These are not included in the standard scope of delivery.
When you purchase the ZUGFeRD licence module, you will receive these mappings together with the necessary XSD files, or they will already have been installed on the system as part of a service you have commissioned.

Step 1: Create a job

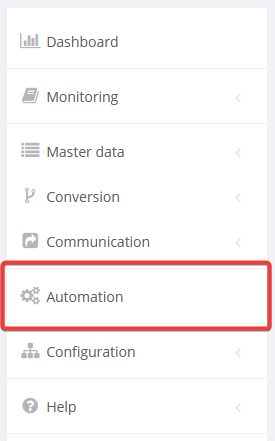

Select Automation from the main menu.

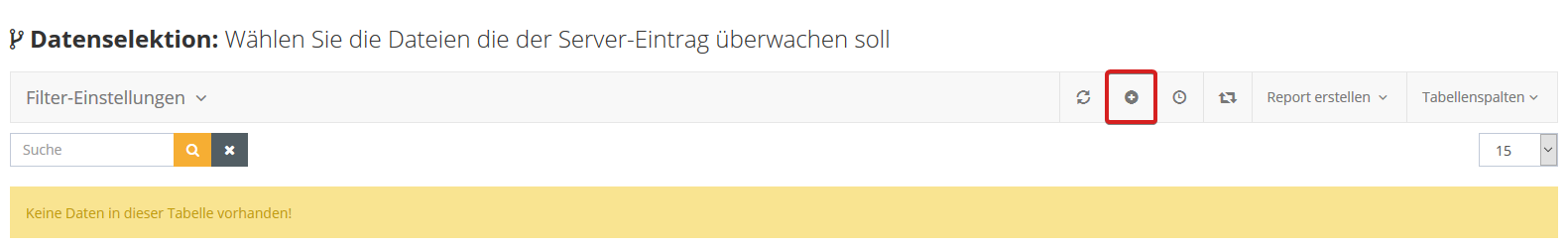

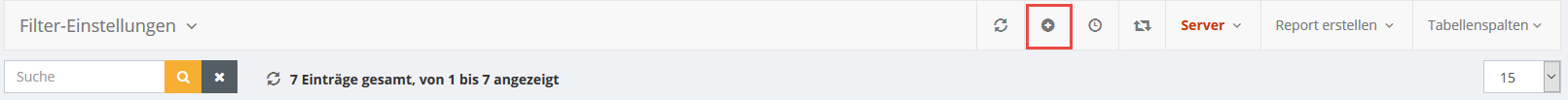

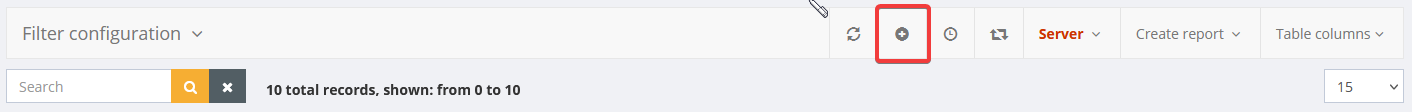

To create a new job, click on the plus sign in the "Filter settings" line.

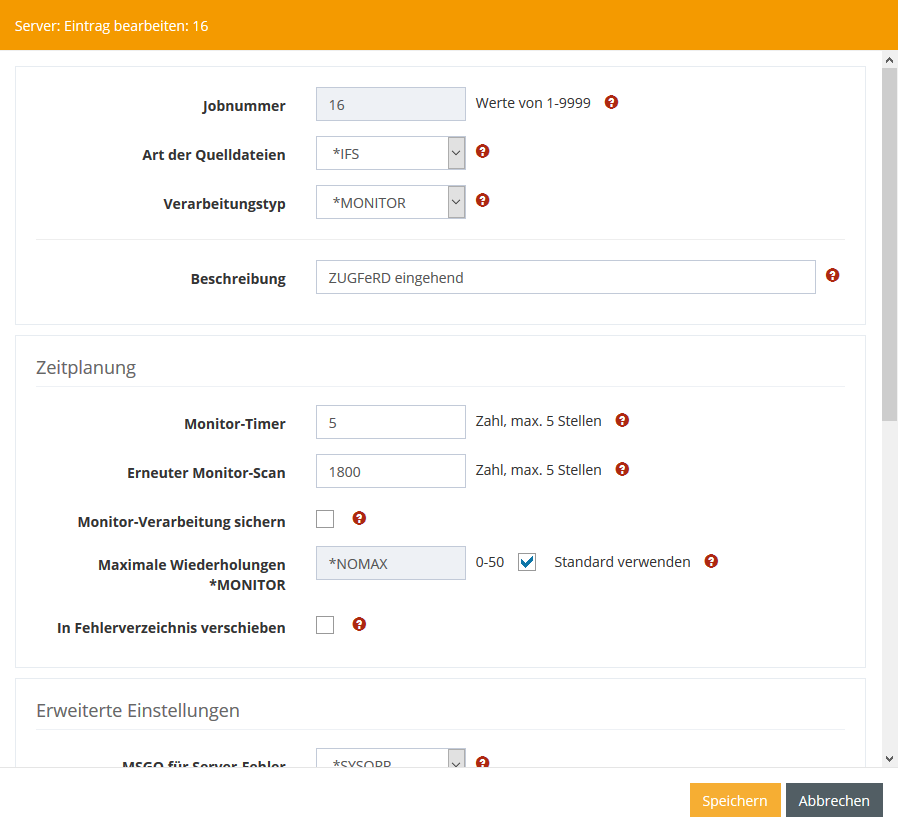

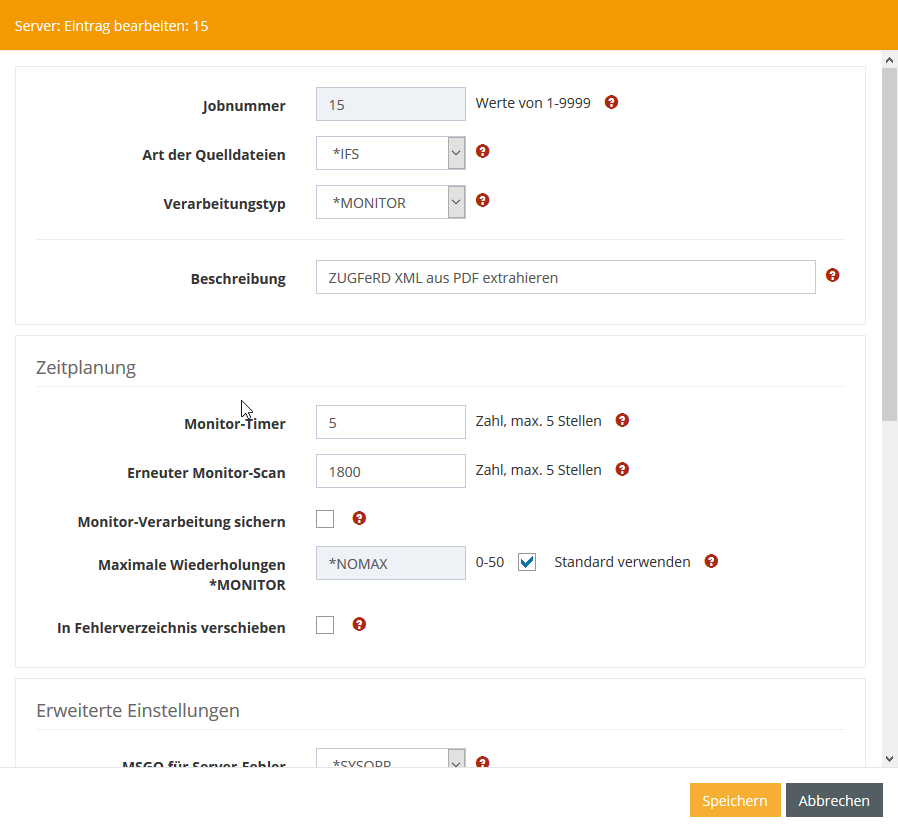

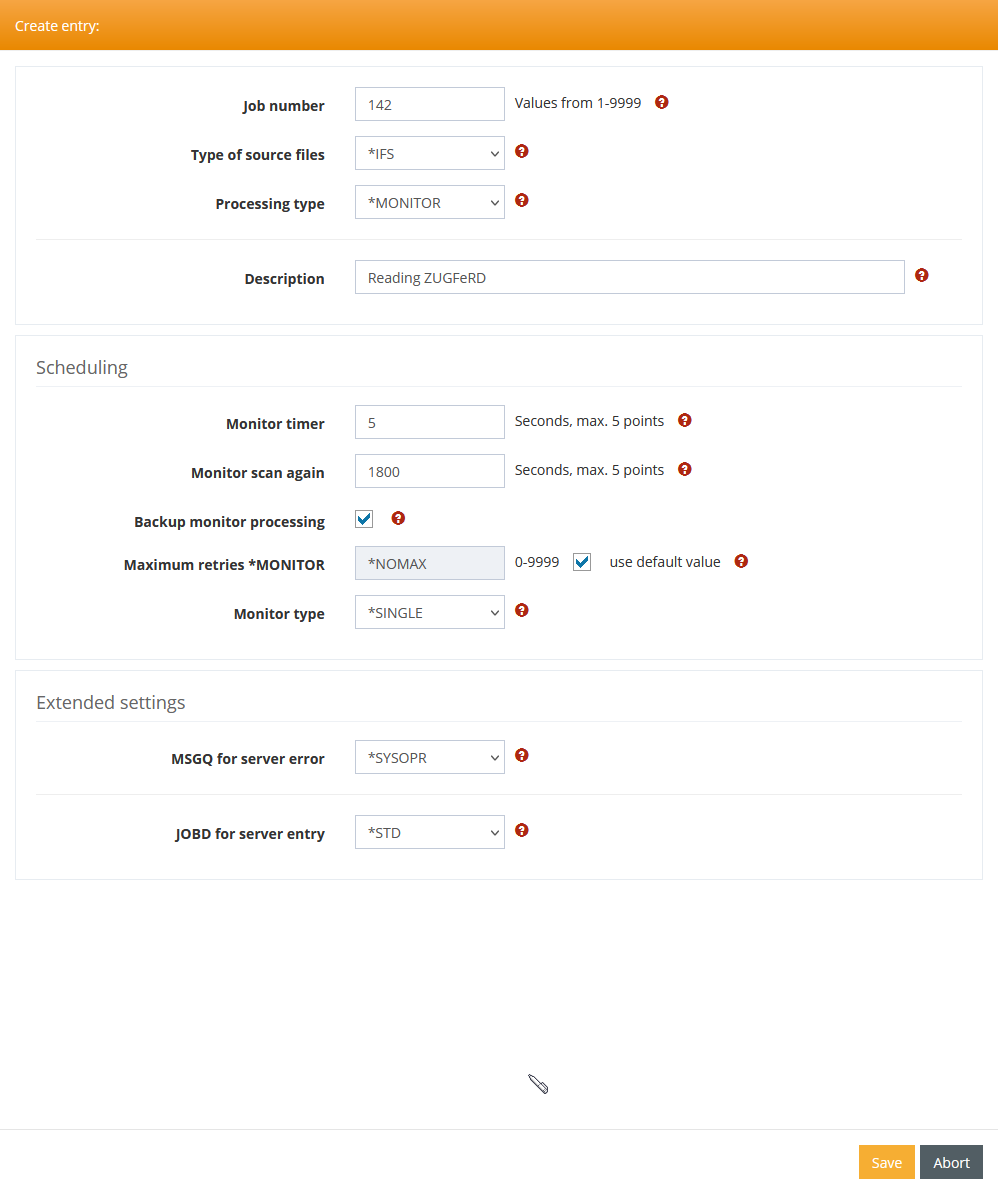

In the following window, you can define a monitor job, for example. It monitors directories for newly arriving objects.

Step 2: Define processing

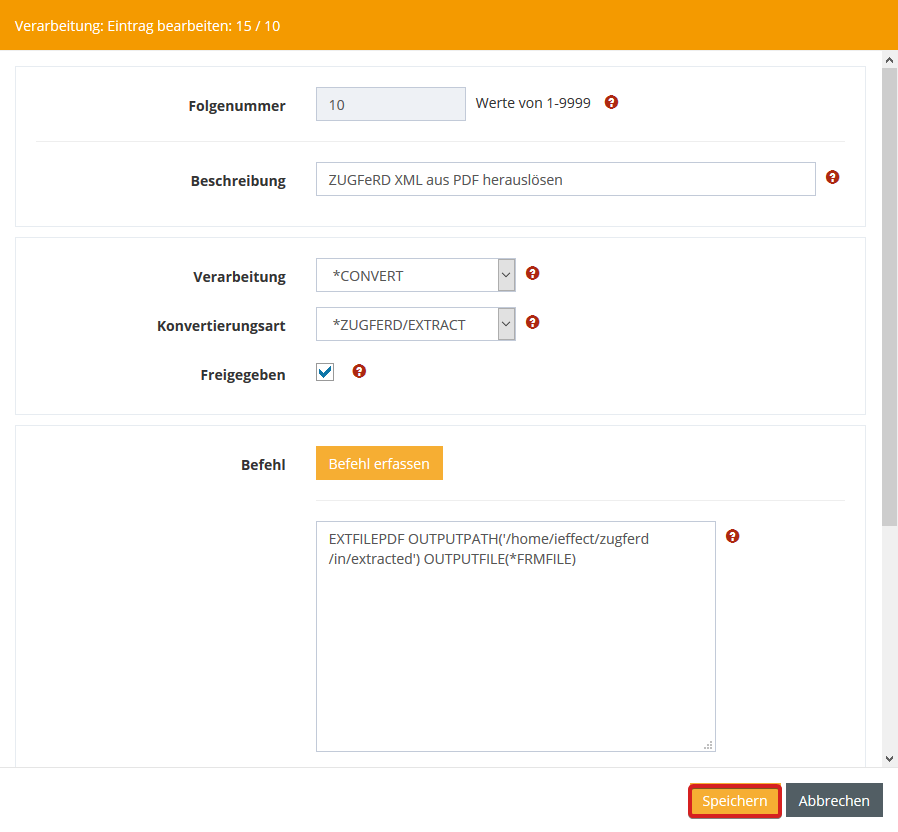

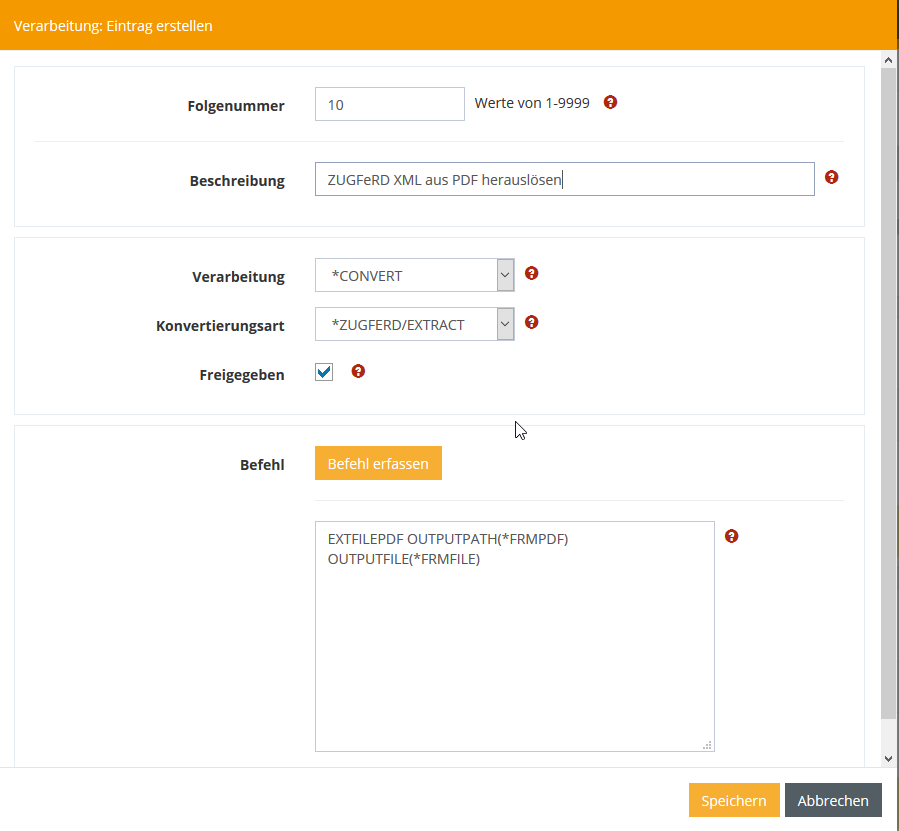

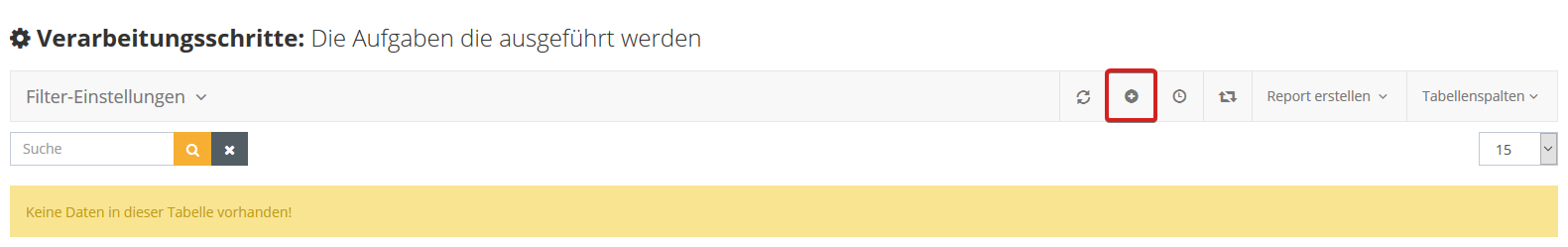

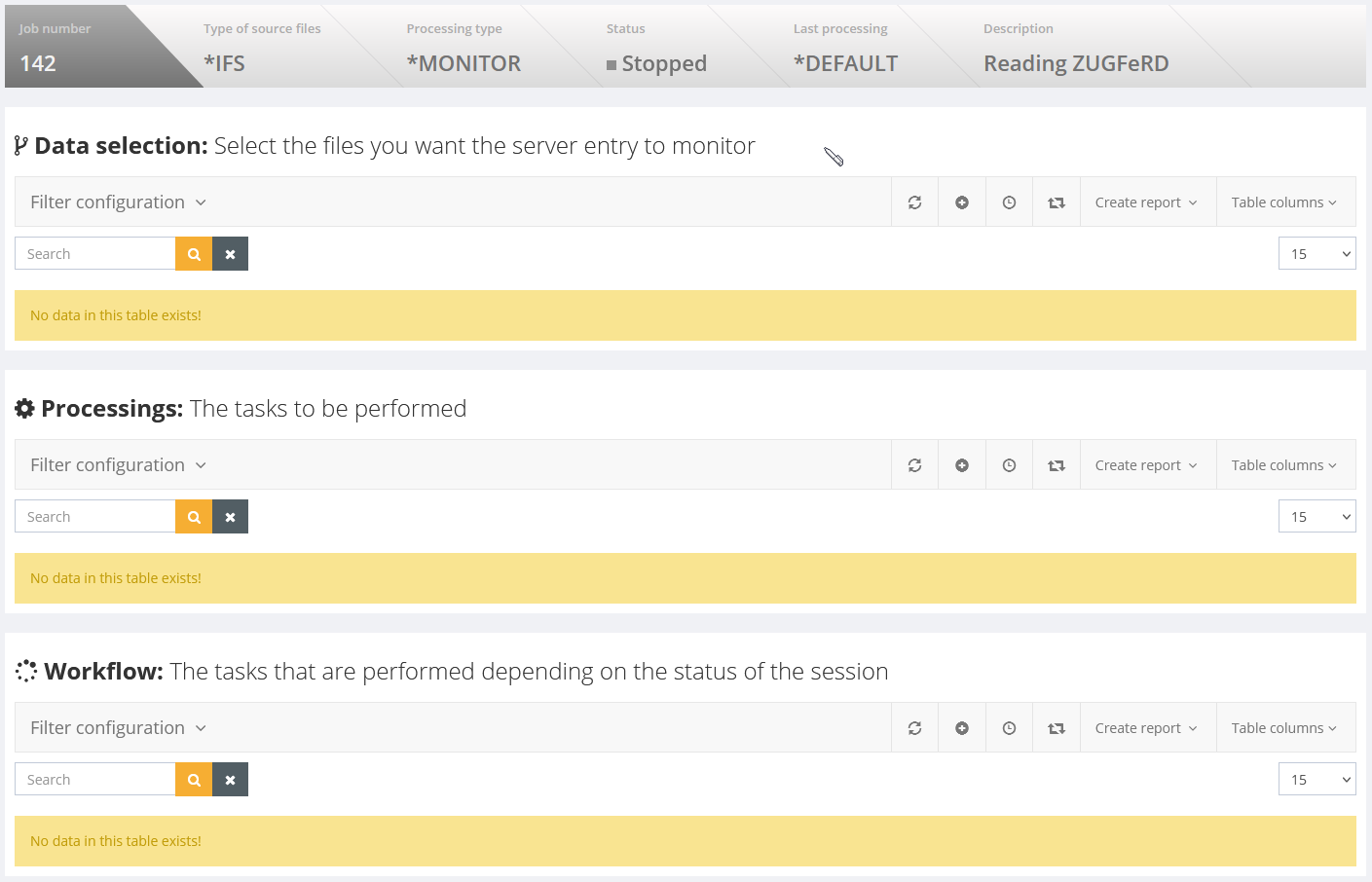

Clicking Save in the previous dialogue box opens the following window. Click on the + sign here to define a new processing step.

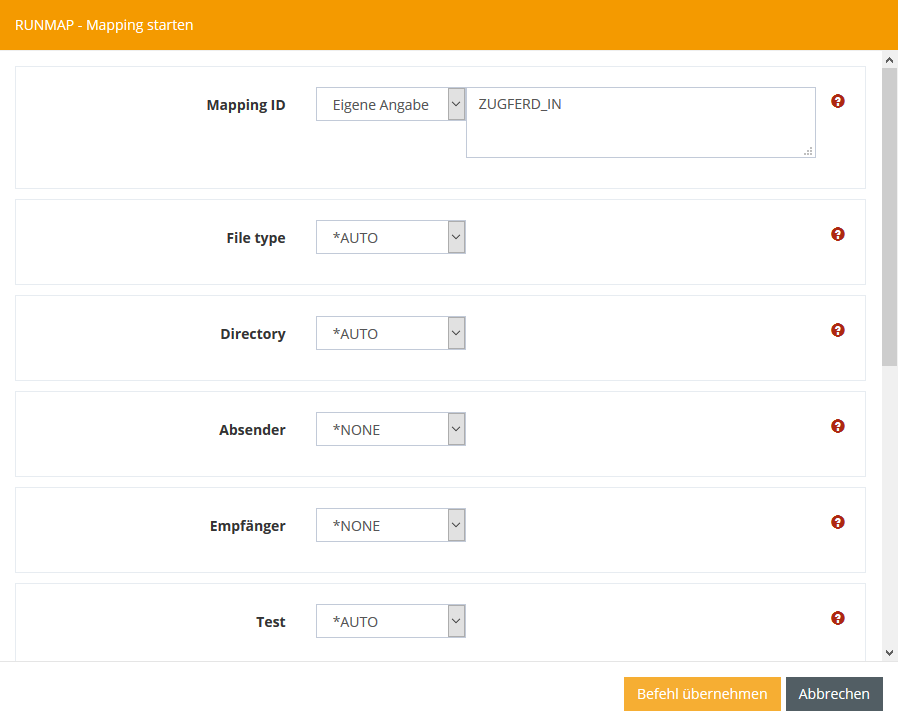

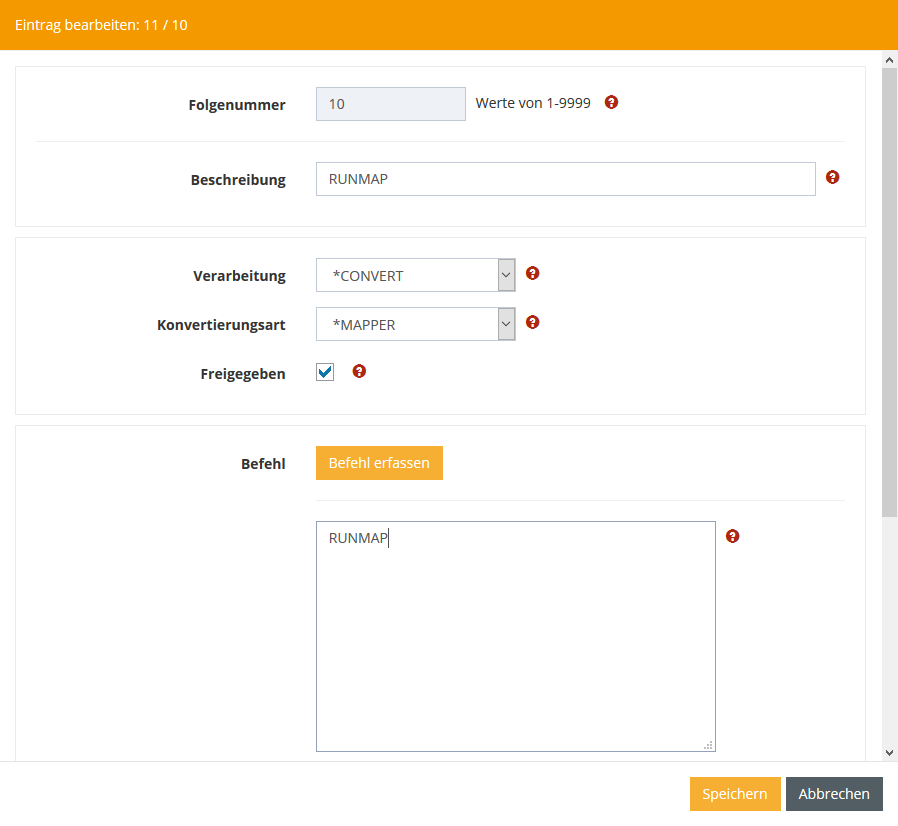

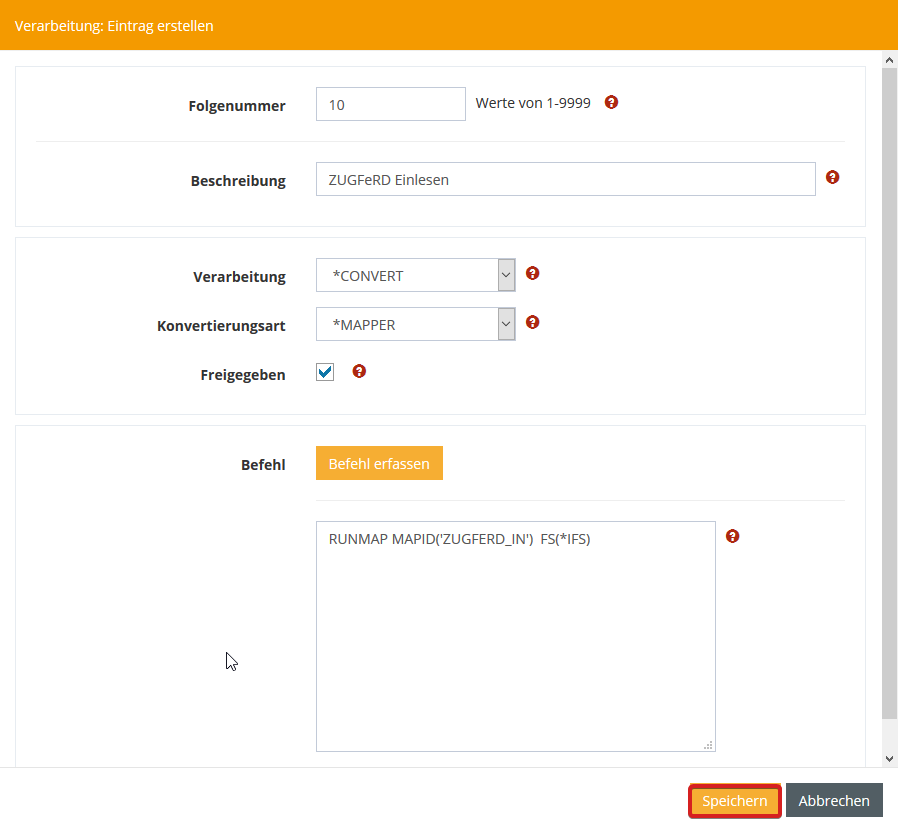

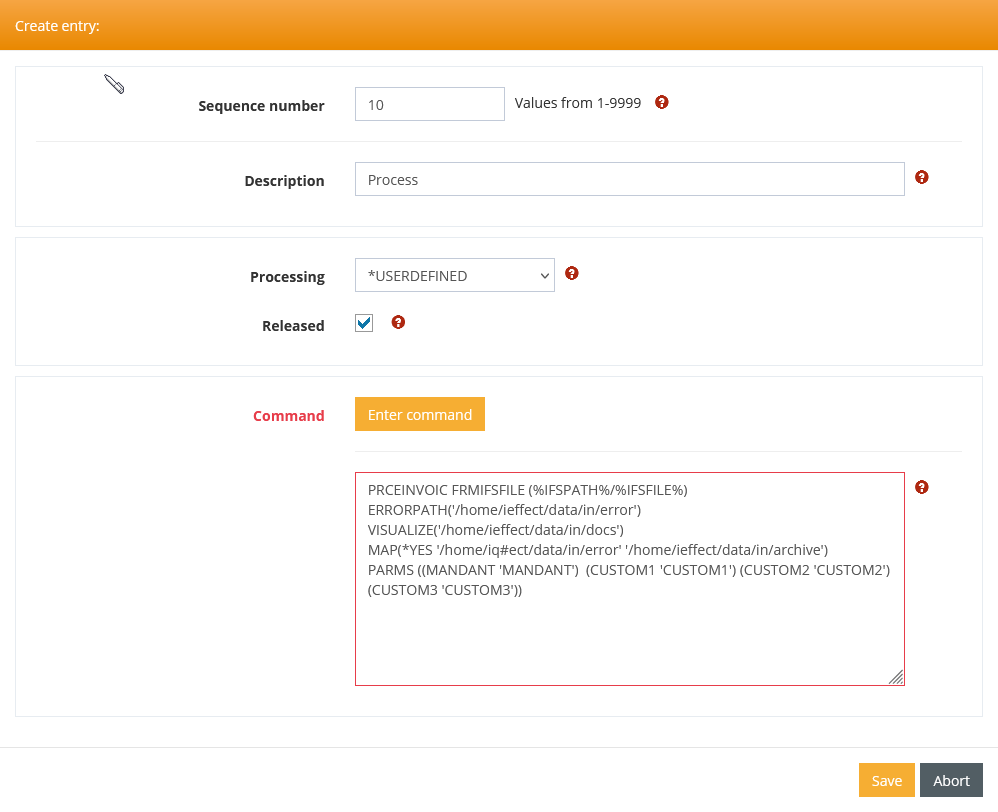

The parameters in the processing step are filled as follows. If necessary, use the Enter command button to obtain input help for the PRCEINVOIC command.

The parameters of the PRCEINVOIC command have the following meanings

Parameter	Value
FRMIFSFILE	The name of the ZUGFeRD file to be processed. When using an IFS monitor, the placeholders %IFSPATH/%IFSFILE% are used to refer to the file recognised by the monitor.
VISUALIZE	Since this command can process XRECHNUNG files in addition to ZUGFeRD files, it is possible to specify the name of the output path in which a PDF visualisation of the XRECHNUNG is to be stored. This parameter is irrelevant for ZUGFERD files.
ERRORPATH	The name of a directory in which incorrect data is to be stored. If, when checking the file to be processed against the schema or the underlying business rules, it is detected that the file is invalid, it is moved to the directory specified here.
MAP	The parameter consists of three parts Part 1: Determines whether the data should be imported into the database. Part 2: Specifies the name of a directory to which the file to be processed is moved if an error occurs. Part 3: Specifies the name of a directory in which the file to be processed is archived.
PARMS	By transferring the user parameters MANDANT, CUSTOM1, CUSTOM2, CUSTOM3, the fields of the same name in interface ZF23INVHT can be filled with individual data.

Step 3: Define data selection

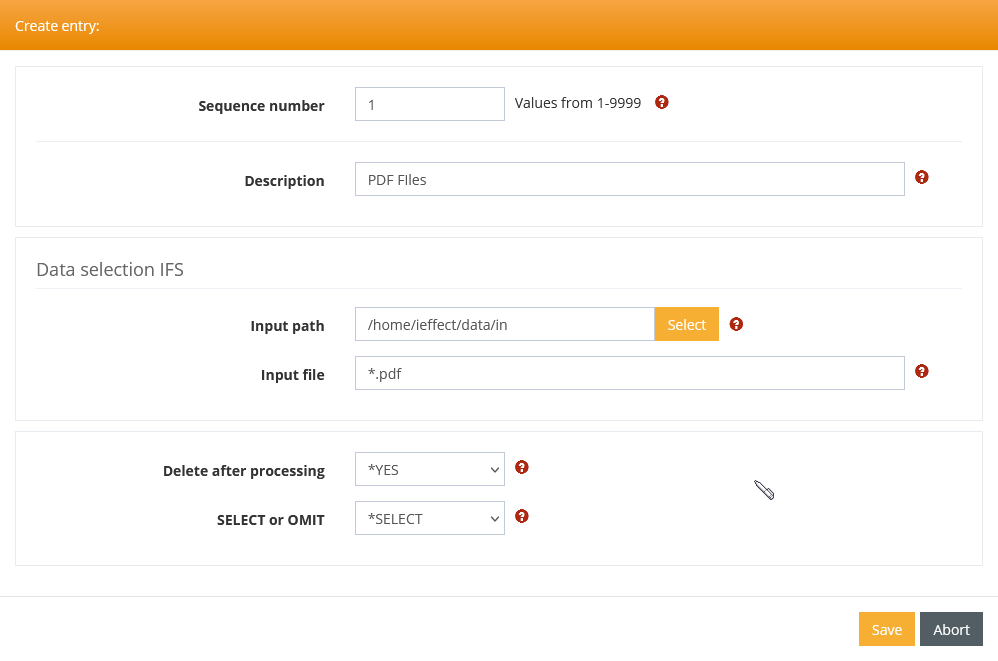

Click on the + sign in the Data Selection section to define a new selection.

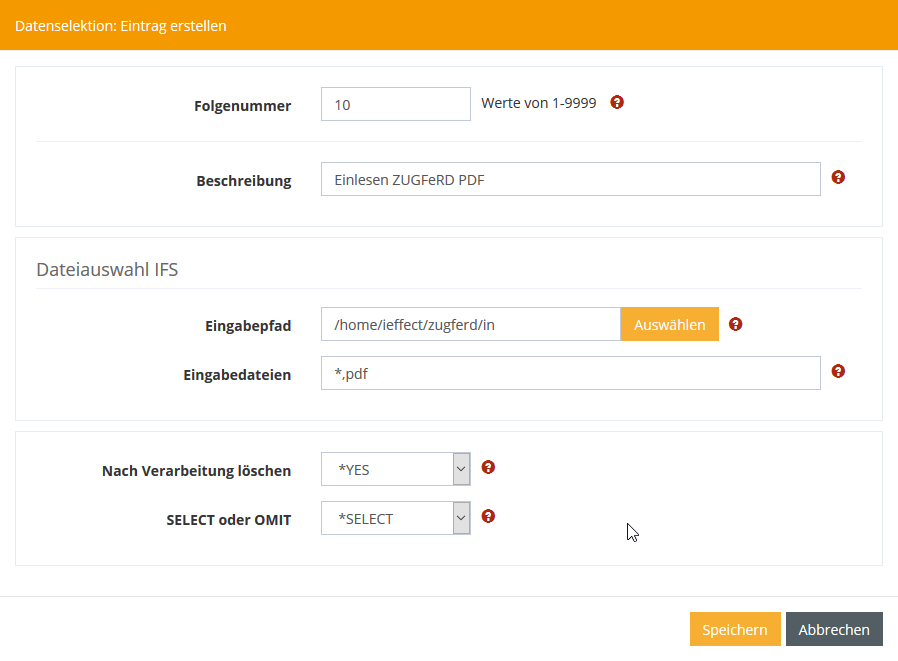

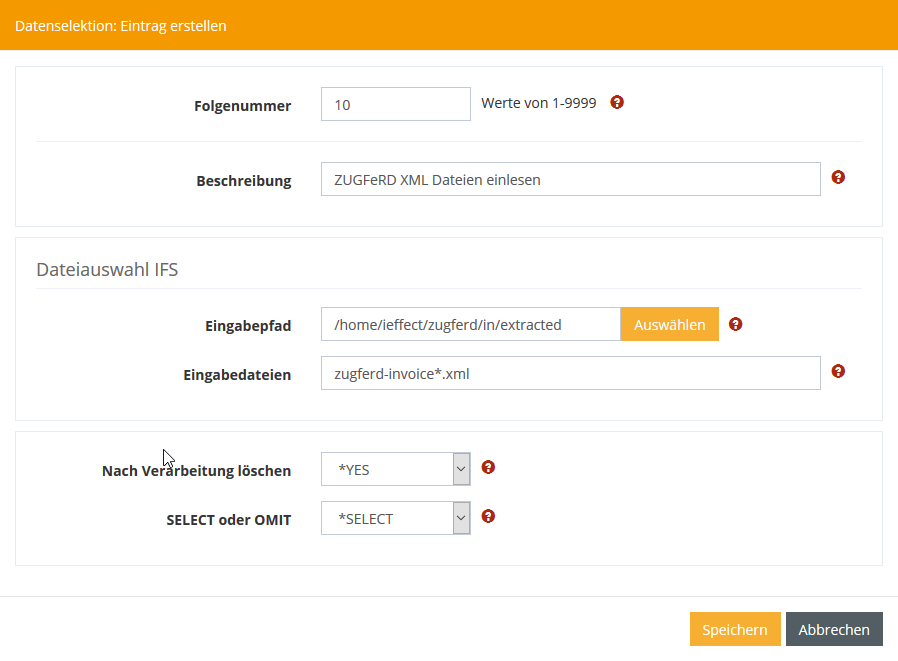

Specify the directory and file name patterns to be monitored by the monitor.
