*X25 resource

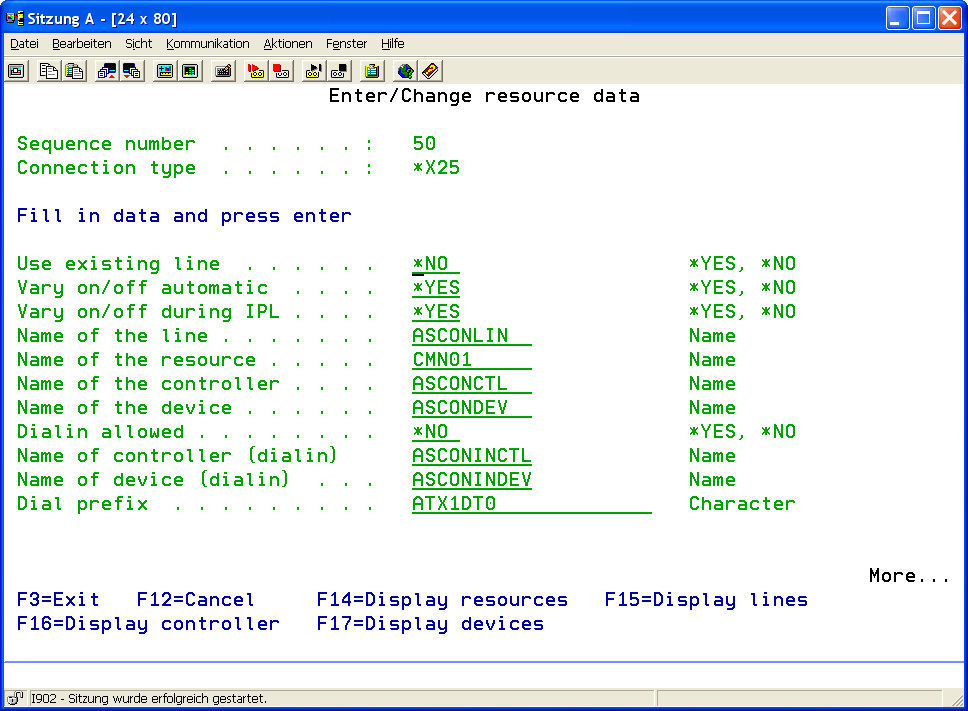

| Use Existing Line | This parameter determines whether an existing line description on the system will be used or a new line description is to be created. Usually there will be an existing line if a Datex-P connection running several logical channels is in use. | |
| *YES | Yes, an existing line is to be used. | |
| *NO | No, a new line will be created. | |
| Line on / off | This parameter determines if lines are to be varied on and off automatically. In this case, the line needs not to be activated by operating staff. | |
| *YES | Yes, lines are varied on and off automatically | |
| *NO | No, lines must be varied on and off by the system user | |
| Vary on and off during IPL | Lines managed here can be varied on automatically after system reboot. This field's entry controls the IPL ( ) value in the line description | |
| *YES | Yes, the line is to be varied on after system reboot. IPL(*YES). | |
| *NO | No, lines are not varied on after system reboot. IPL(*NO). | |
| Line Name | Enter a line description name that is to be used for the resource. | |
| Resource Name | Enter the AS/400 resource name (CMN01/LIN011....). | |
| Controller Name | Enter a controller description name that is to be used for the resource. | |
| Device Name | Enter a device description name that is to be used for the resource. | |
| Dial-in allowed | For certain communication modules (e.g. OFTP), the partner's dial-in to this AS/400 system can be allowed. This parameter determines if this is generally allowed for this resource. | |
*YES | Yes, dial-in for certain modules is allowed. | |
| *NO | No, dial-in for this resource is not allowed. | |
 | ||
| Controller Name (dial-in) | Enter, if allowed, a controller description name which is to be used here. | |
| Device Name (dial-in) | Enter, if allowed, a device description name that is to be used here. | |
| Connection Prefix | This parameter defines additional numbers to be dialed before the connection number stored in the profile-resource-allocation. Using for example ATX1DT0 a "0" is prefixed to reach a subscriber line in a telephone system. | |

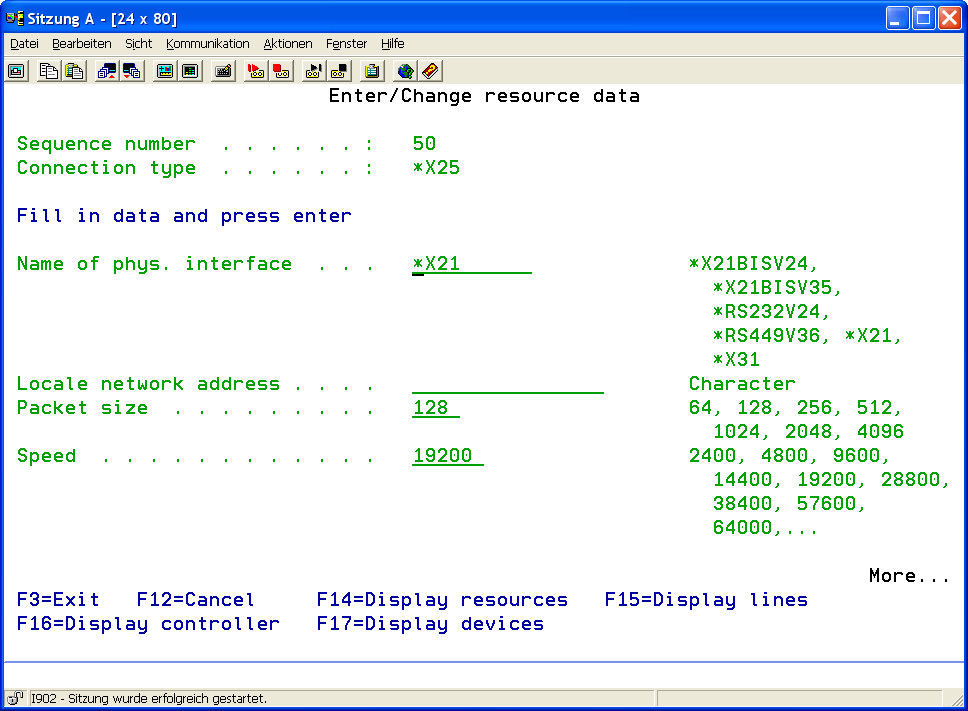

| Name of Physical Interface | Enter the name of the interface to which the resource is connected. Possible values: *X21BISV24, *X21BISV35, *RS232V24, *RS449V36, *X21, *X31 | |
| Local Network Address | Enter the address (connection number) allocated to the line. | |
| Packet Size | Enter the packed size to be used. Possible values: 64, 128, 256, 512, 1024, 2048, 4096 | |
| Speed | This parameter determines the resource's line speed Valid values are 2400,4800,9600,14400,19200,38400,57600,64000.... | |
| Description | A short description of the resource entry. | |
