Partner master data for the *TELEBOX module
| Telebox Profile | In order to assign data to an i-effect profile (and therefore to a Telebox partner to connect with), enter the number of the i-effect profile describing this partner. Use function key F4 to display a list of profiles defined in the system. |  |

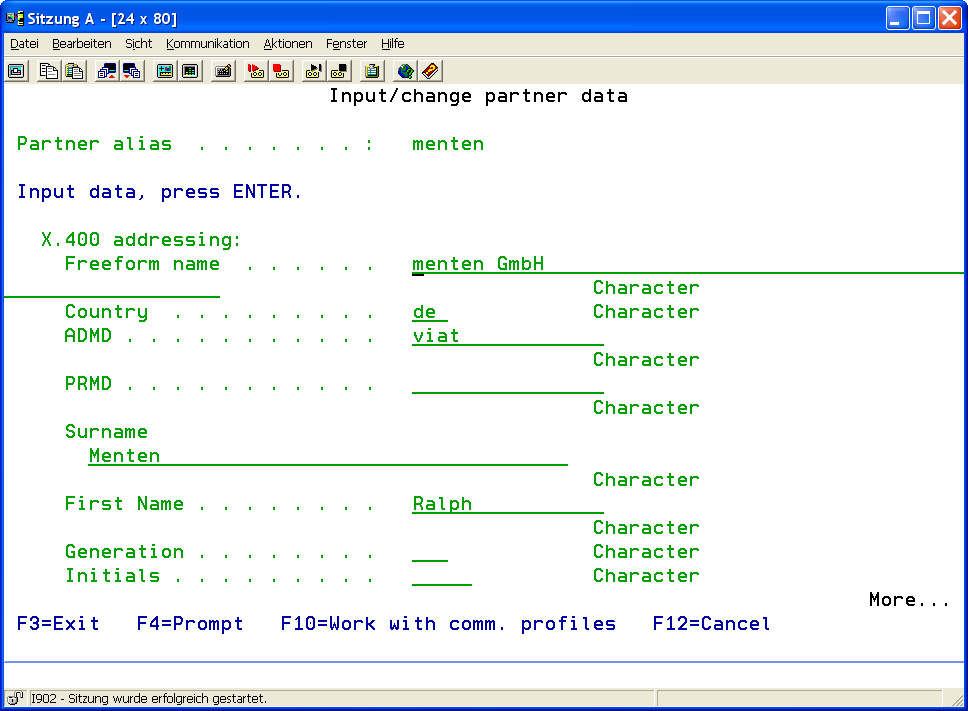

X.400 Addressing:
| Freeform name: | Name of the addressee. Enter a descriptive name of the X.400 partner. |
| Country: | Country key. The usual X.400 abbreviation for this field is "C". |
| ADMD: | ADMD stands for Administration Management Domain. The usual X.400 abbreviation for this field is "A". |
| PRMD: | PRMD stands for Private Management Domain. The usual X.400 abbreviation for this field is "P". |
| Surname: | Enter the recipient's surname. The usual X.400 abbreviation for this field is "S". |
| First name: | Enter the recipient's first name. The usual X.400 abbreviation for this field is "G". |
| Generation: | Enter the abbreviation of the recipient's name suffix. The usual X.400 abbreviation for this field is "GN". |
| Initials: | Enter the partner's initials. The usual X.400 abbreviation for this field is "I". |

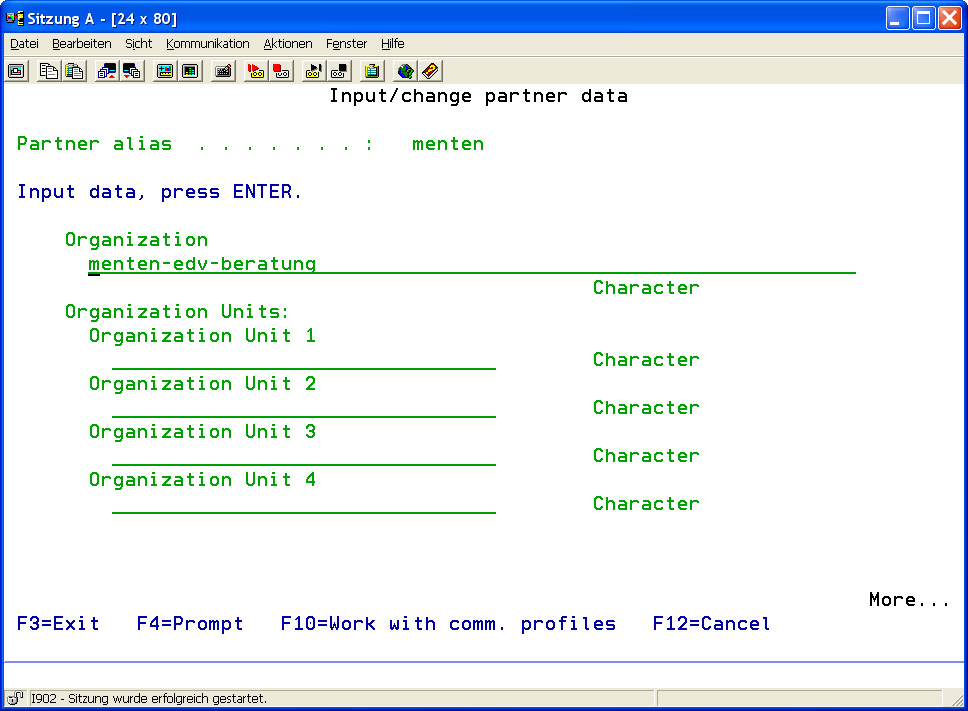

| Organization: | Specifications about the organization. The usual X.400 abbreviation for this field is "O". |
| Organization Unit 1 to 4: | Enter the organization units. The usual X.400 abbreviation for these fields is "OU". |

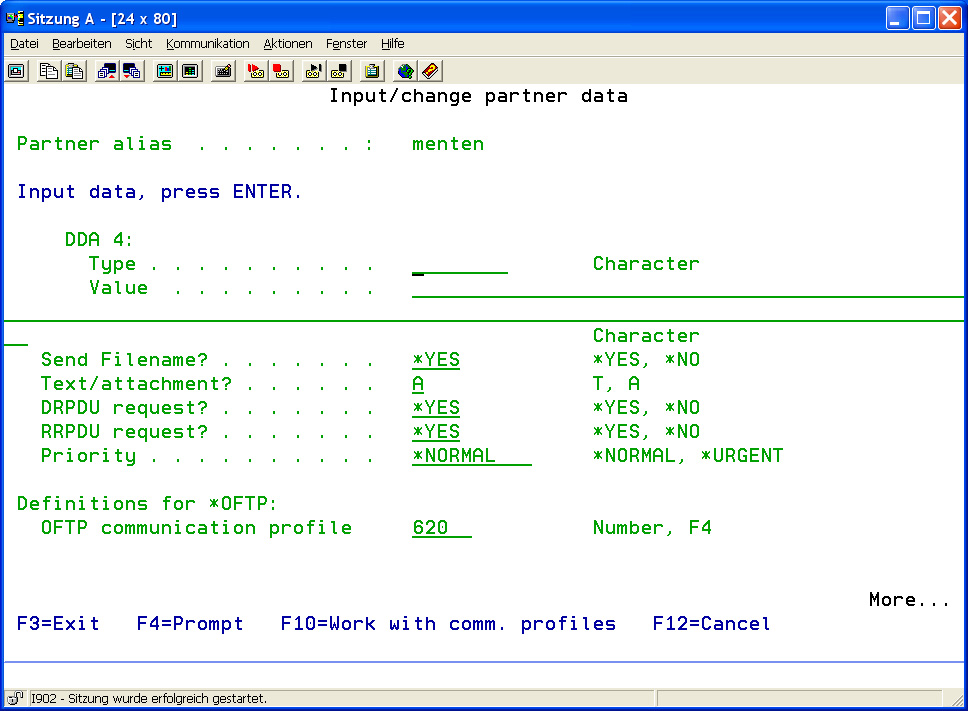

DDA 1 to 4:
| Type: | One of four possible DDA definitions (Direct Distribution Attribute). The usual X.400 abbreviation for DDA definitions is "DDA". | ||||
| Value: | Definition of a value being displayed together with the corresponding DDA type entry, i.e. the one having the same number. Both are required and must be defined together. | ||||
| Send File Name? | When sending attachments via the interface, it might be preferable (depending on the recipient) to suppress the transmission of the file name. In certain cases, the forwarding ADMD generates an additional text bodypart for the file name, which can cause pro-cessing problems on the recipient's side. Use this parameter to suppress the transmis-sion of the file name. Options are:
| ||||
| Text/Attachment? | Determine whether text or attachment is to be processed. | ||||
| DRPDU Request? | Determine if a DRPDU transmission confirmation (delivery report data unit) is necessary. | ||||
| RRPDU Request? | Determine if a RRPDU confirmation of receipt (receipt report data unit) is necessary. | ||||
| Priority: | Determine the priority of the communication of this entry. Choose either *URGENT or *NORMAL. |
