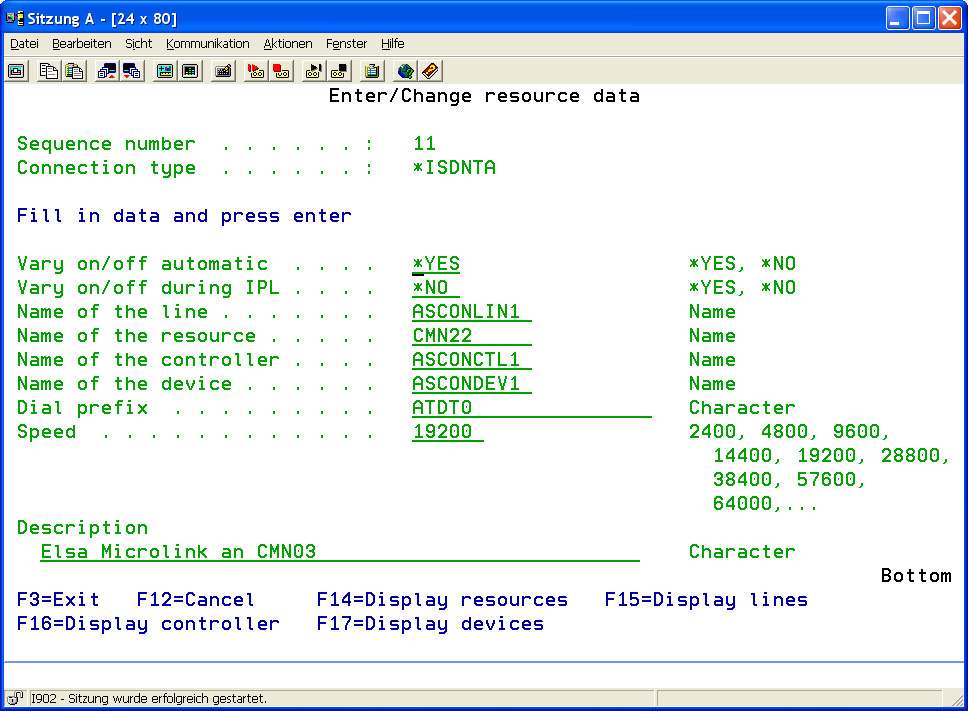

*ISDNTA resource
| Line on / off | This parameter determines if lines are to be varied on and off automatically. In this case, the line need not be activated by operating staff.
| ||||
| Vary on and off during IPL | Lines managed here can be varied on automatically after system reboot. This field's entry controls the IPL ( ) value in the line description
| ||||
| Line Name | Enter a line description name that is to be used for the resource. | ||||
| Resource Name | Enter the AS/400 resource name (CMN01/LIN011....). | ||||
| Controller Name | Enter a controller description name that is to be used for the resource | ||||
| Device Name | Enter a device description name that is to be used for the resource | ||||
| Connection Prefix | This parameter determines additional numbers to be dialed before the connection number stored in the profile-resource-allocation. Using for example ATX1DT0 a "0" is prefixed to reach a subscriber line in a telephone system | ||||
| Speed | This parameter determines the resource's line speed. Valid values: 2400,4800,9600,14400,19200,38400,57600,64000.... | ||||
| Description | Enter a short description of the resource entry. |
