Extended parameters of the module *HTTP

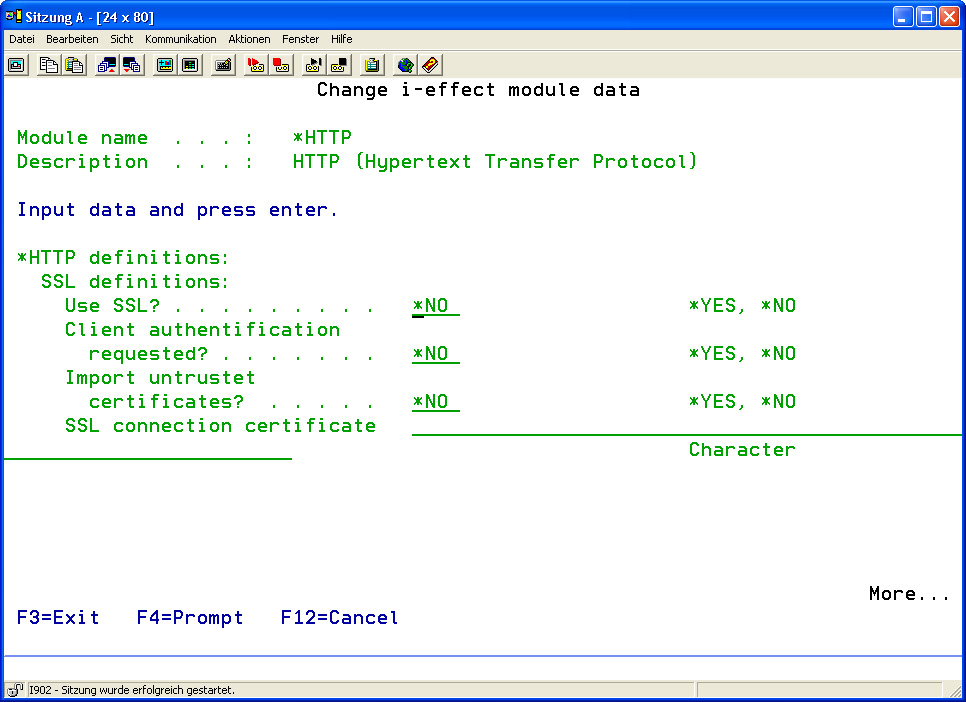

Select the *HTTP module by entering option number 8 into the corresponding choice box. In the dialog program "Change i-effect Module Data", parameters can now be modified.

The following options for the *HTTP module can be set:

SSL Details:
SSL	This parameter controls the protocol to be used. Determine whether HTTP communication is to be established via SSL/HTTPS (Secure Socket Layer) or standard HTTP.
	*YES	YES, the connection is established via SSL/HTTPS
	*NO	NO, the connection is established via standard HTTP.
Use Client Authentication?	If YES is set in the "SSL" parameter, this parameter determines if the client sending data must authenticate with it's X.509 certificate to the HTTP server. If YES is set here and NO is set in the preceding parameter "Import Untrustworthy Certificates ?", the partner's certificate must exist in the keystore before establishing a connection. By this, the partner's certificate, automatically sent via an established HTTPS connection, can be verified by the HTTP server. The HTTP server only accepts the incoming connection after successful verification of the client's certificate (check with certificate in the keystore). Otherwise, the connection will be closed due to the lack of proof that it is the partner trying to connect. If NO is set in this parameter, certificate verification is not requested when establishing a connection.
	*YES	Yes, client authentication is used.
	*NO	No, client authentication is not used.

This form of SSL authentication is supported by only a few clients and is generally not common on the Internet.

Import Untrustworthy Certificates?	If YES is set in the "SSL" parameter, it is possible to allow the HTTP server to automatically import client certificates that do not exist in the keystore. Therefore, select option YES in this parameter. This might be a security risk inasmuch as every client is con-sidered trustworthy due to automatic import of the client's certificate into the keystore. If option NO is set and the certificate does not exist in the keystore when a connection is established, the connection will automatically be closed. It is correct to abort the connection because the client's identity cannot be verified due to the missing certificate in the keystore. Automatic import of certificates into the keystore is only possible if the parameter „Use Client Authentication ?" is set YES.
	*YES	Yes, untrustworthy client certificates are automatically imported.
	*NO	No, untrustworthy client certificates are not automatically imported.
SSL Connection Certificate	Enter the name of the key pair containing the public key (certificate) in the keystore, which is to be used for connection authentication.
	Characters	Alias of the certificate in the keystore.

Connection:
Connection Timeout	Define the timeout in seconds for connection establishment.
Read Timeout	Define the timeout in seconds for reading data on an open data connection.
Internal Timeout	This parameter defines the timeout value in seconds until an internal timeout is reported.
Maximum Send Retries	Define the maximum number of attempts to retry to send a file after connection failure or interruption.
Retry Pause	Define the pause in seconds before the next attempt to connect.
Email Address Originator	Originator email address that is inserted into the header as sender address.
Email Address Webmaster	Email address of the responsible Webmaster.
Proxy:
HTTP Proxy Host	If a proxy server is used for HTTP communication, enter its IP address or DNS name here.
HTTP Proxy Port	If a proxy server is used for HTTP communication, enter its TCP/IP port here.
HTTP Proxy User ID	If a proxy server is used for HTTP communication, enter, if required, the user ID of the authorized user.
HTTP Proxy Password	If a proxy server is used for HTTP communication, enter, if required, the password of the authorized user.

Archive:	Archive Inbound Messages ? Determines if inbound HTTP data is to be archived. The following values are possibel
	*YES	YES, received data is archived.
	*NO	NO, received data is not archived.
	Archive Outbound Messages ? Determine if outbound HTTP data shall be archived. The following values are possible
	*YES	YES, inbound data shall be archived.
	*NO	NO, inbound data shall not be archived.
Archive Directory	Archive Path (Inbound) Enter the directory where inbound HTTP data shall be archived.
	CODE `Default path: /i-effect//http/in`
	Archive Path (Outbound) Enter the directory where outbound HTTP data shall be archived.
	CODE `Default path: /i-effect//http/out`
	Path for Erroneous Files This parameter determines the name of the path where erroneous HTTP data is moved.
	CODE `Default path: /i-effect//http/error`
