Extended parameters of the module *BASE

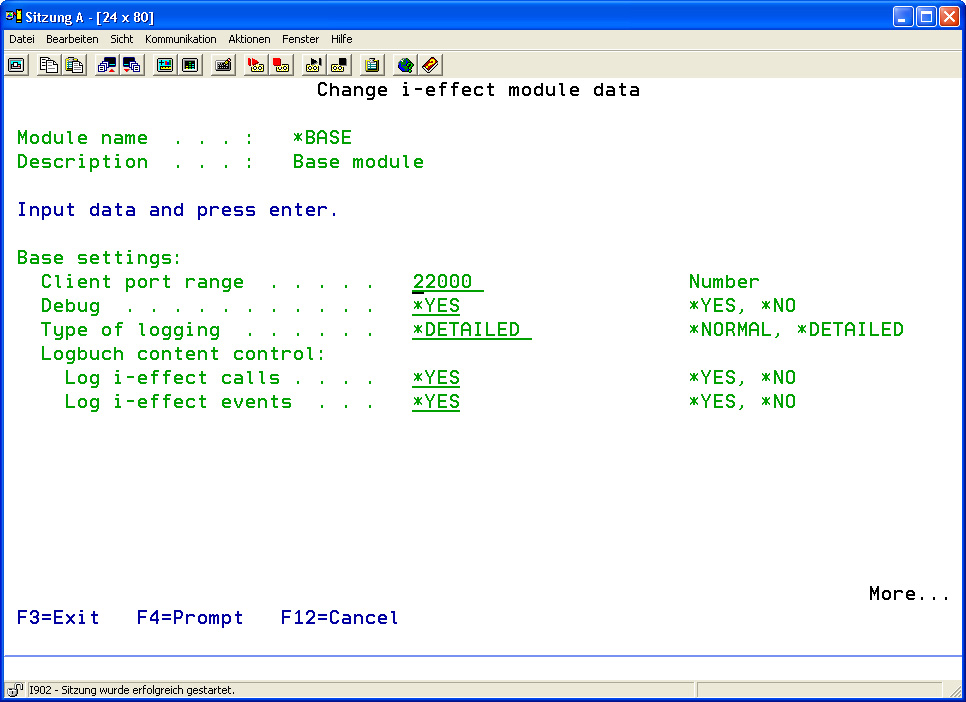

Select the *BASE module by entering option number 8 into the corresponding choice box. In the dialog program "Change i-effect Module Data", parameters can now be modified.

The following options for the *BASE module can be set:

Client Port Range Enter the port range for clients that have remote access to certain functionalities of i-effect®.
Positive IntegralDefault Value: 22000
Debug ?  The debug switch controls whether additional information is recorded in the job log within an i-effect® application and whether temporary files are kept for analysis.
Possible values:
*NOAdditional information is not recorded. Temporary files will be deleted at the end of the job.
*YESAdditional information is recorded. Temporary files will not be deleted at the end of the job.
Type of Logging  This parameter determines the amount of messages logged into the job log. It is recommended to set this parameter to *DETAILED in order to allow a detailed problem analysis. Important information for the support will be recorded.
Possible values:
*NORMALNormal logging.
*DETAILEDDetailed logging.
Logbook Control

This parameter includes two elements:

  • Record i-effect® calls
  • Record i-effect® events

This parameter is used to define the amount of messages logged into the logbook. Using the value *NO in both parameters completely disables all logging.

Internal Protocols: Other Work FilesThis directory is fixed during installation and cannot be changed. It contains internal loggings and debugging information.
CODE
Default: /i-effect//internal
Basic IFSThis directory is fixed during installation and cannot be changed. It contains the basic i-effect® program directory in the IFS files system.
CODE
Default: /i-effect/
Sending Preparation Path: Working DirectoryThis directory contains files prepared for sending. It is a working directory for i-effect® that can store temporary work files.
CODE
Default: /i-effect//internal/send_prepared
